Trapezoidal leadscrew, any length 50mm to 1000mm long, stainless steel: 8mm, 10mm, or 12mm, diameter, 2mm, 8mm, 10mm pitch

Trapezoidal leadscrew, any length 50mm to 1000mm long, stainless steel: 8mm, 10mm, or 12mm, diameter, 2mm, 8mm, 10mm pitch

Price range: $6.00 through $54.98

Choose material length (in mm) below. Enter custom cut length in text field below if a more specific length is needed. Material length entered must be nearest length in menu. If no custom length is entered, pieces will be supplied to the length selected in the menu.

Category:

Description

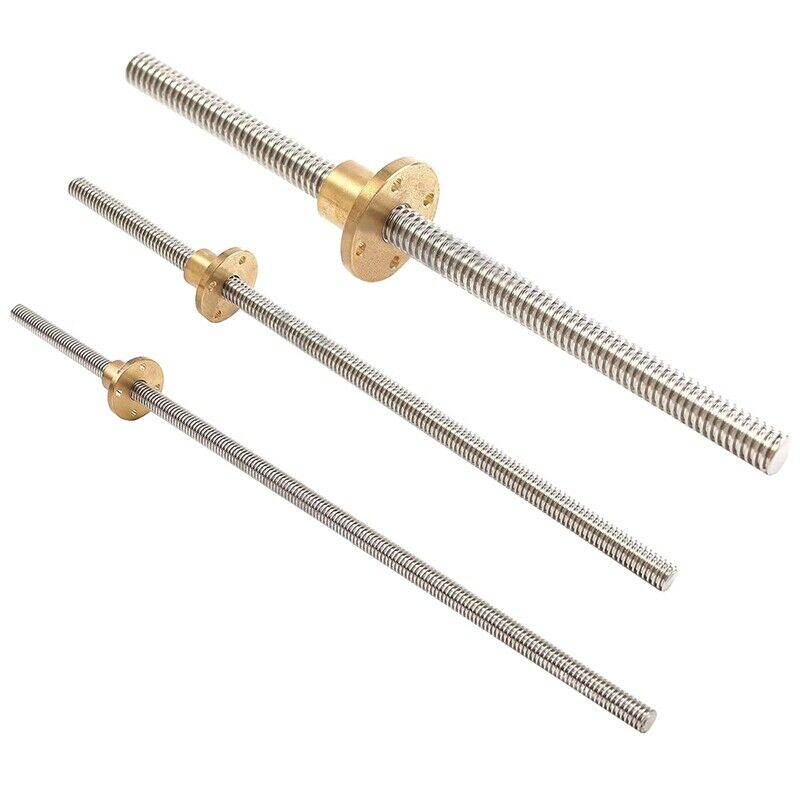

  • Item price is for one leadscrew and one bronze nut.
  • Leadscrews are used to transform rotary motion (typically from a motor) to linear motion (typically to a machine axis of motion) with high precision.

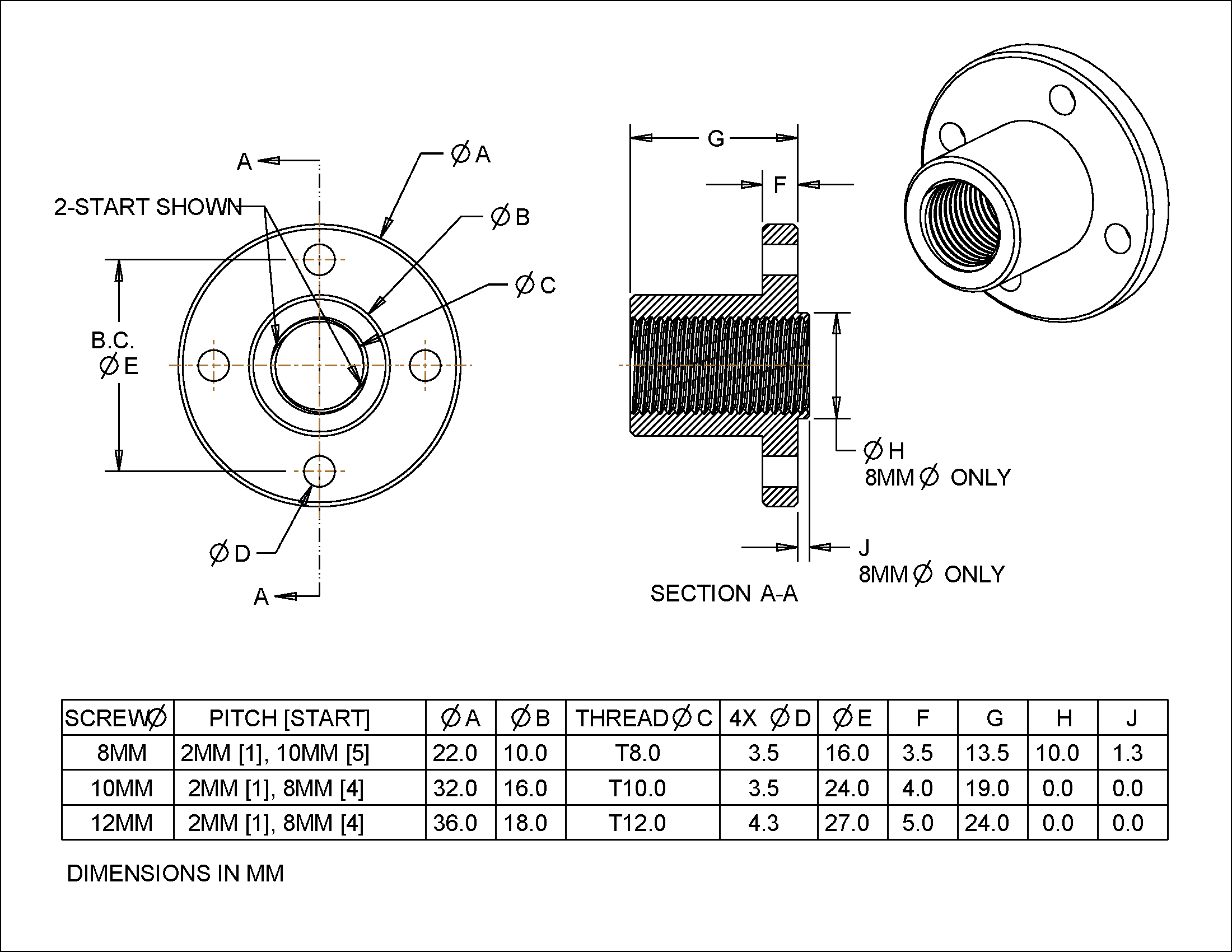

  • These leadscrews are often named by their DIAMETER X PITCH, # OF THREADS. For example, a 10mm leadscrew with 8mm pitch (8mm nut translation per revolution) would be called T10 x 8, 4 start. The number of threads is most often half the pitch.
  • Leadscrew is stainless steel, nut is bronze.
  • Lubricate leadscrew with oil or grease in your application for maximum performance and durability.
  • Specify exact cut length on order page. Cut length must be within range in item title.
  • Cut length tolerance is +/- 2mm, and has a generous chamfer (typically 6mm) to allow nut to thread.
  • Multiple cuts per piece are not available. Please order another part if more pieces are needed.
  • Shipping price increases with shipping container size and weight, not by the number of parts ordered.
